Parent SKU : XHW10
SKU : XHW10-250-BK
| Wire Size (AWG/MCM) | 10 AWG |
| Conductor Material | Stranded Copper |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.18 in. 4.572 mm |
| Conductor Count | 1 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| UL Listing Numbers | UL 44, UL 1685 |
| Voltage Rating | 600V |
| Ampacity Rating | 40 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL 44 UL 1685 RoHS Compliant ASTM B3, B8 ANSI/ICEA S-95-658/NEMA WC-70 NFPA 70 NEC XLPE -40°C FT1 Federal Spec A-A-59546 |
| Miscellaneous Information | All values are nominal and subject to correction. *Ampacities for not more than three conductors in raceway or cable or earth (directly buried), based on ambient temperature of 30°C per Table 310.16 of the National Electrical Code. **Overcurrent protection shall not exceed 15 amps for #14 AWG, 20 amps for #12 AWG, and 30 amps for #10 AWG per NEC. |
| RoHS Compliance | Yes |
| Primary Applications | Main service entrance cables, feeders, branch circuit wiring in conduit and ducts, power distribution, lighting, and control circuits. |
| Common Uses |
|
| Weight per Foot | 0.038 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||

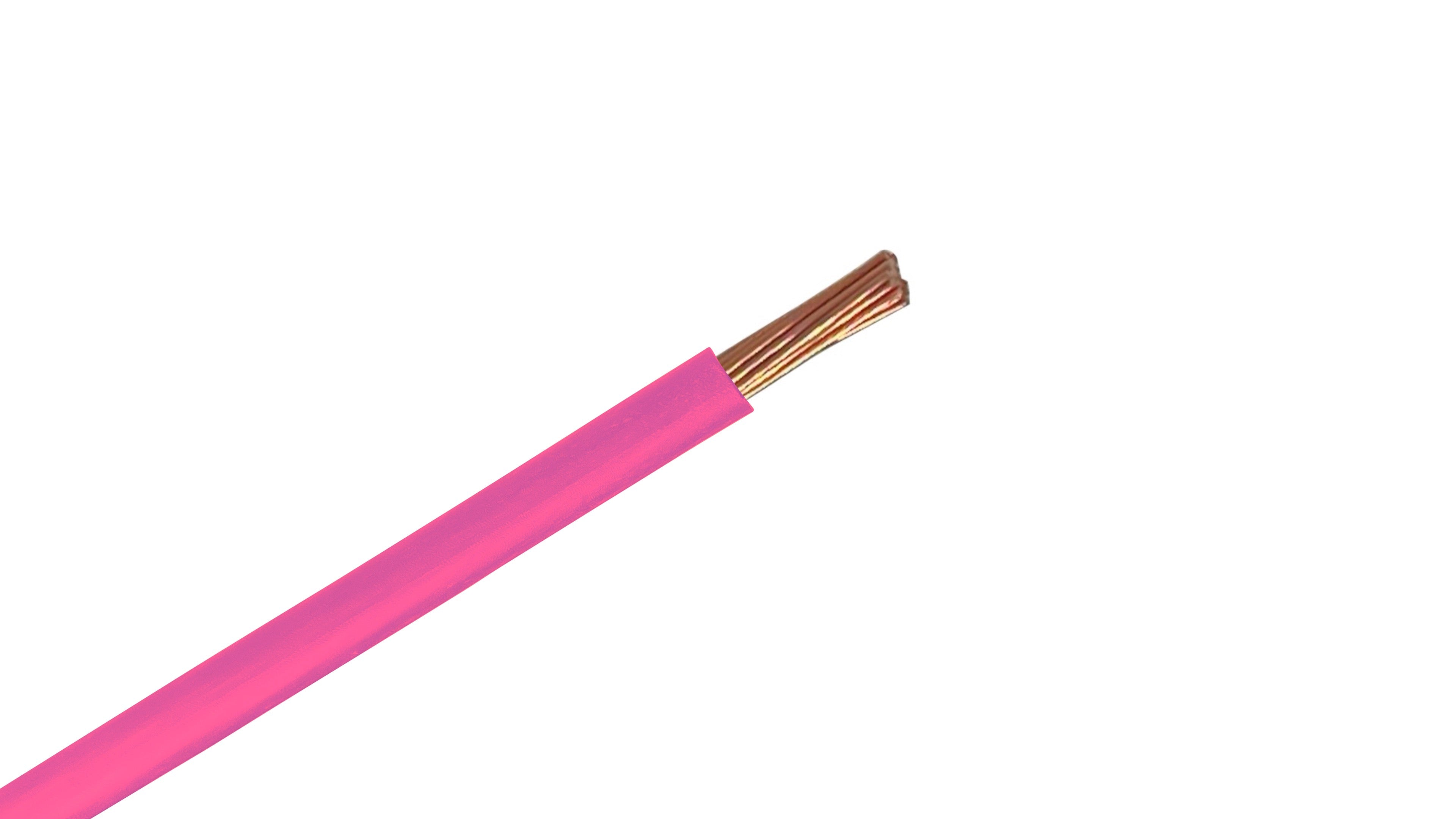

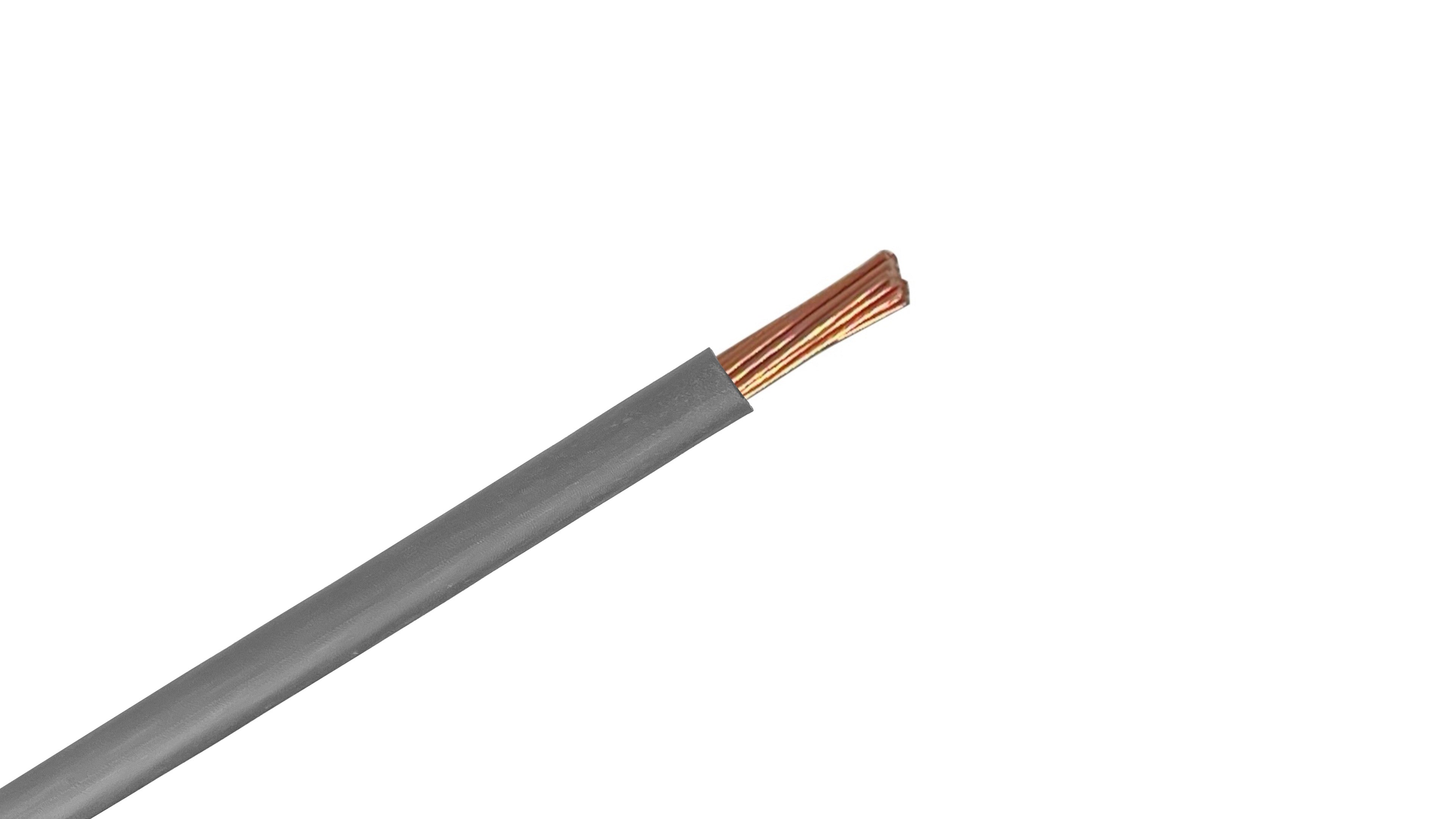

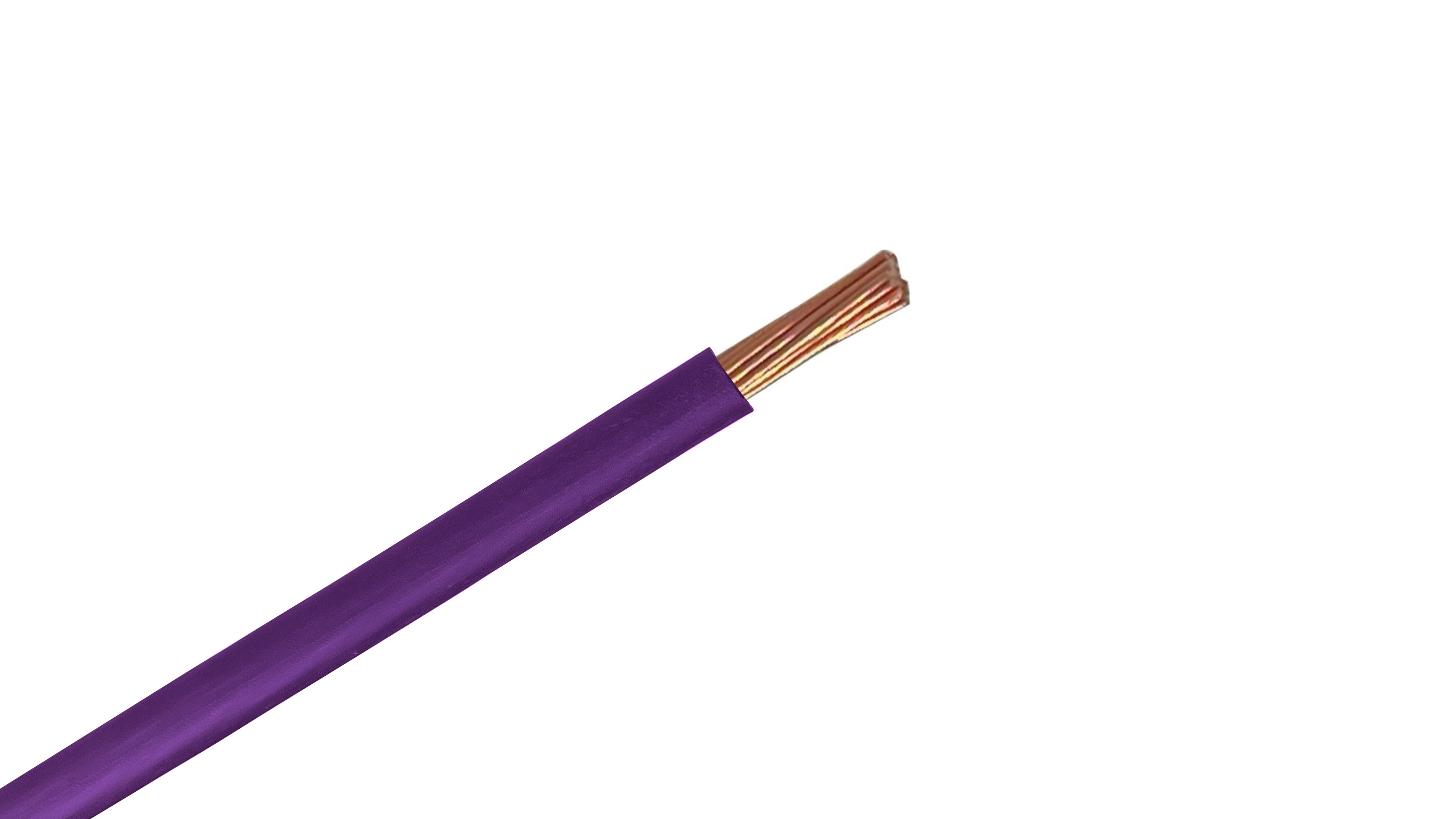

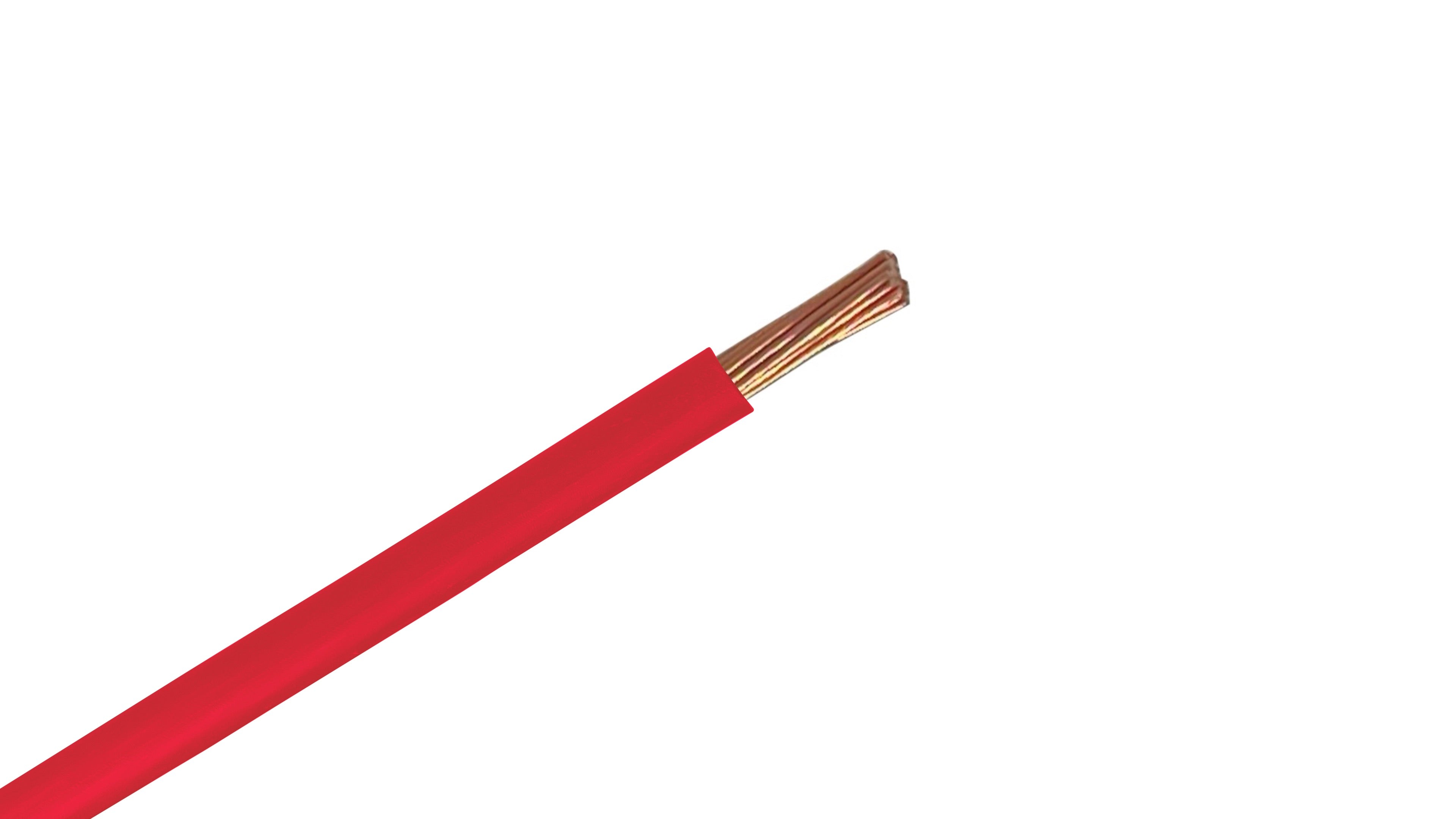

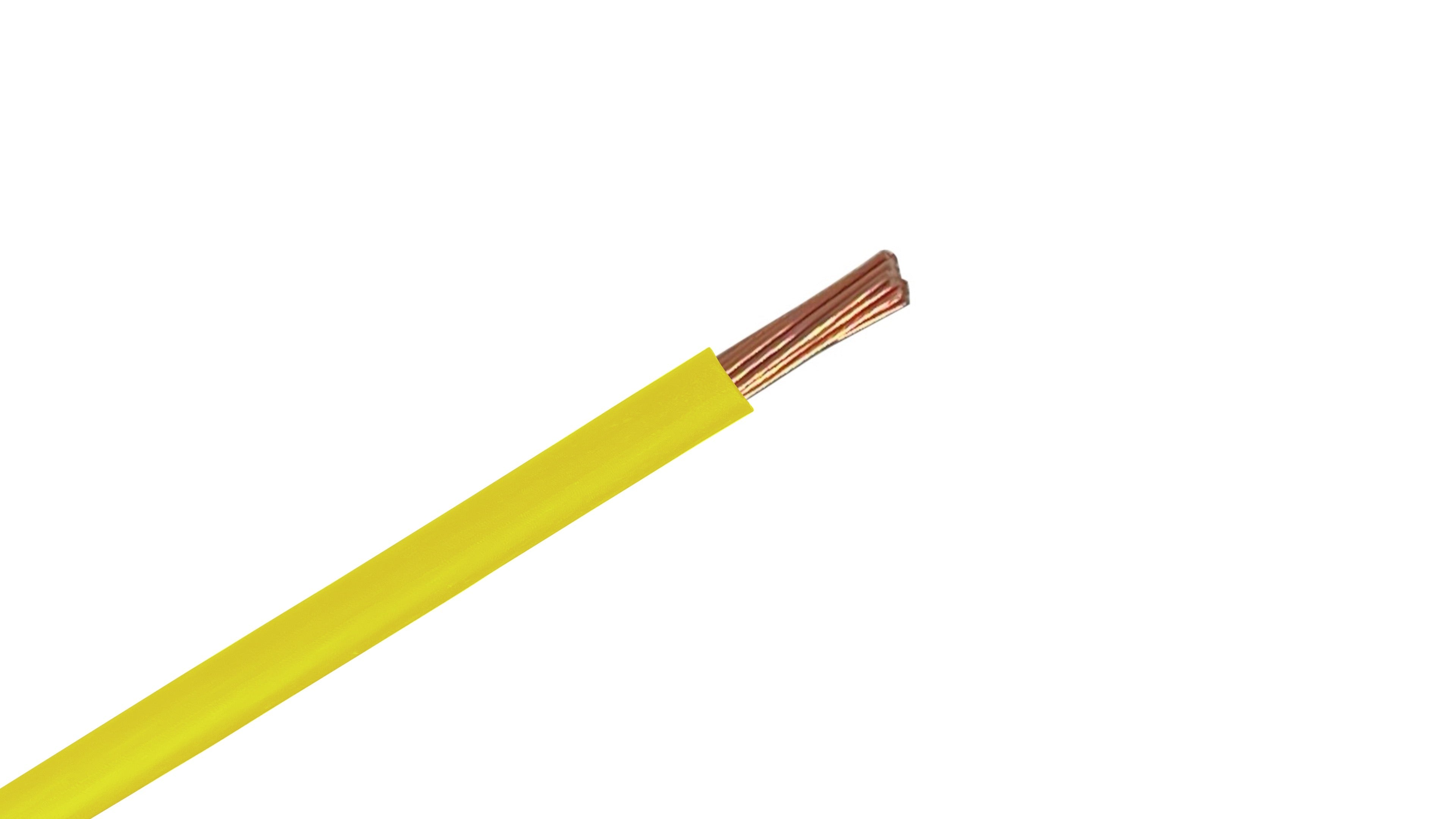

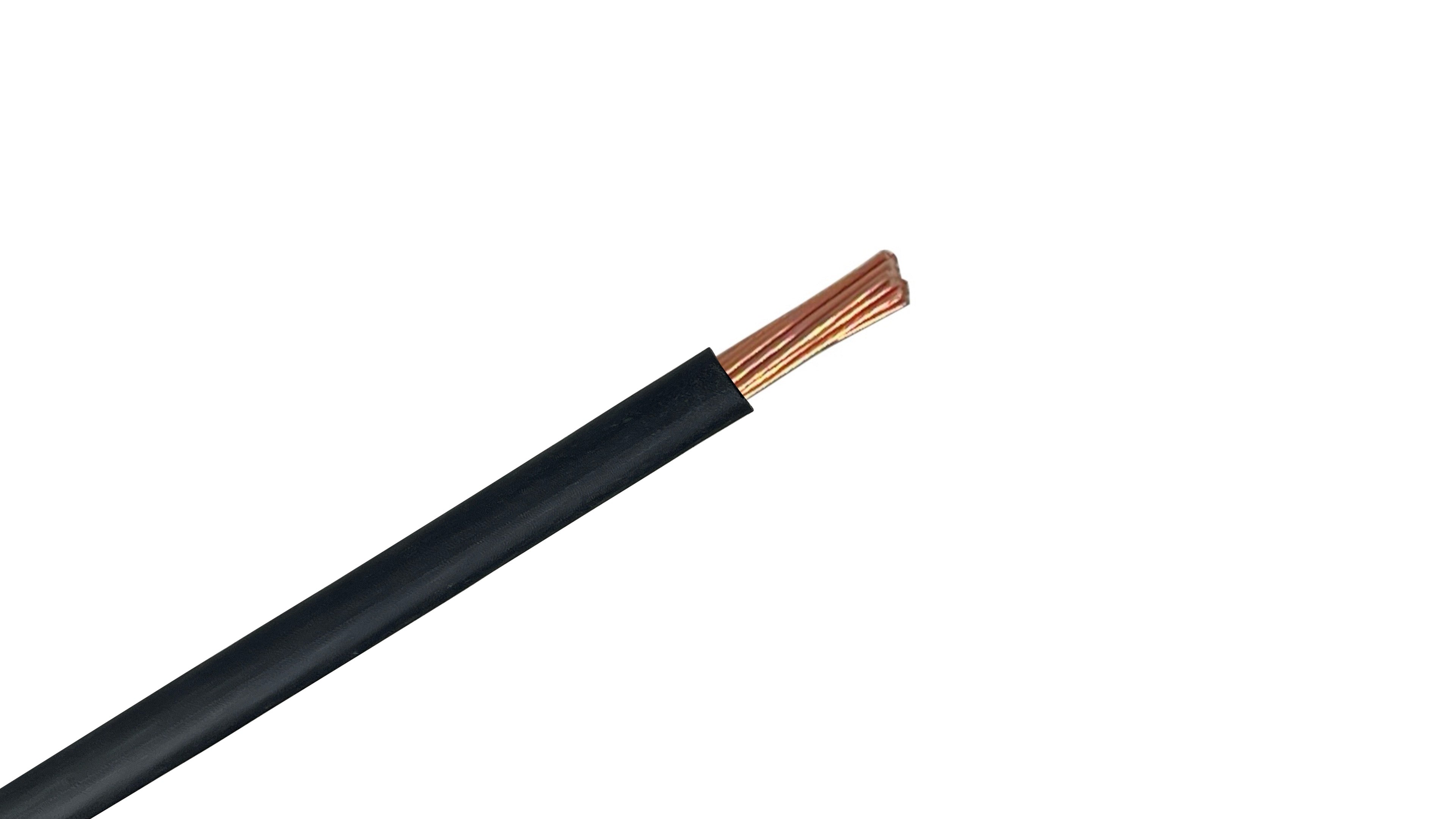

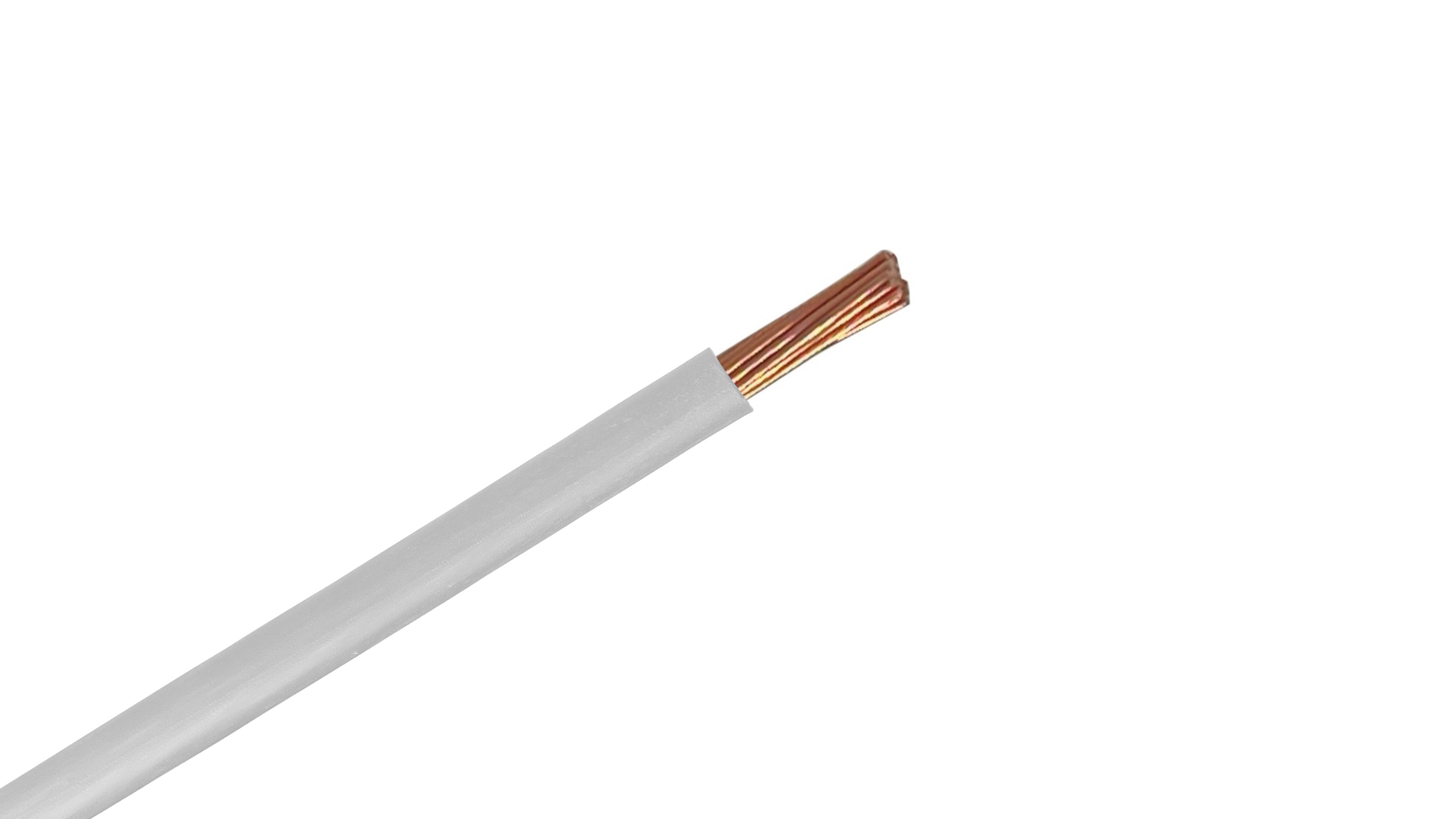

#10 AWG Copper XHHW-2 Building Wire is a high-performance electrical wire primarily used for power distribution in various building applications. It features a soft drawn bare copper conductor with cross-linked polyethylene (XLP) insulation, offering excellent resistance to heat, moisture, and abrasion. This wire is suitable for both wet and dry locations and is dual-rated for 600V or 1000V applications.
XHHW-2 is an acronym that describes the wire's key characteristics: 'X' for Cross-linked polyethylene insulation, 'HH' for High Heat-resistant, 'W' for Water-resistant, and '-2' indicating its suitability for 90°C operation in both wet and dry conditions. This designation highlights its enhanced durability and versatility in challenging environments.
This wire is primarily used for power distribution in conduit or other recognized raceways for services, feeders, and branch circuit wiring, as specified in the National Electrical Code (NEC). Common applications include residential and commercial building wiring, machine tool wiring, appliance circuits, and control circuits. It is also suitable for HVAC systems and motor leads for small to medium-sized motors.
The main difference lies in their temperature ratings in wet environments. Standard XHHW wire is rated for 90°C in dry locations but only 75°C in wet locations. XHHW-2, however, is an upgraded version that maintains a consistent 90°C rating in both dry and wet conditions, offering greater versatility and enhanced safety.
At 90°C, #10 AWG Copper XHHW-2 wire has an allowable ampacity of 40 Amps. However, according to the National Electrical Code (NEC), the overcurrent protection for #10 AWG copper wire shall not exceed 30 amps. It is crucial to always adhere to NEC guidelines for safe installation and operation.
