Parent SKU : SOOW10-10
SKU : SOOW10-10-250

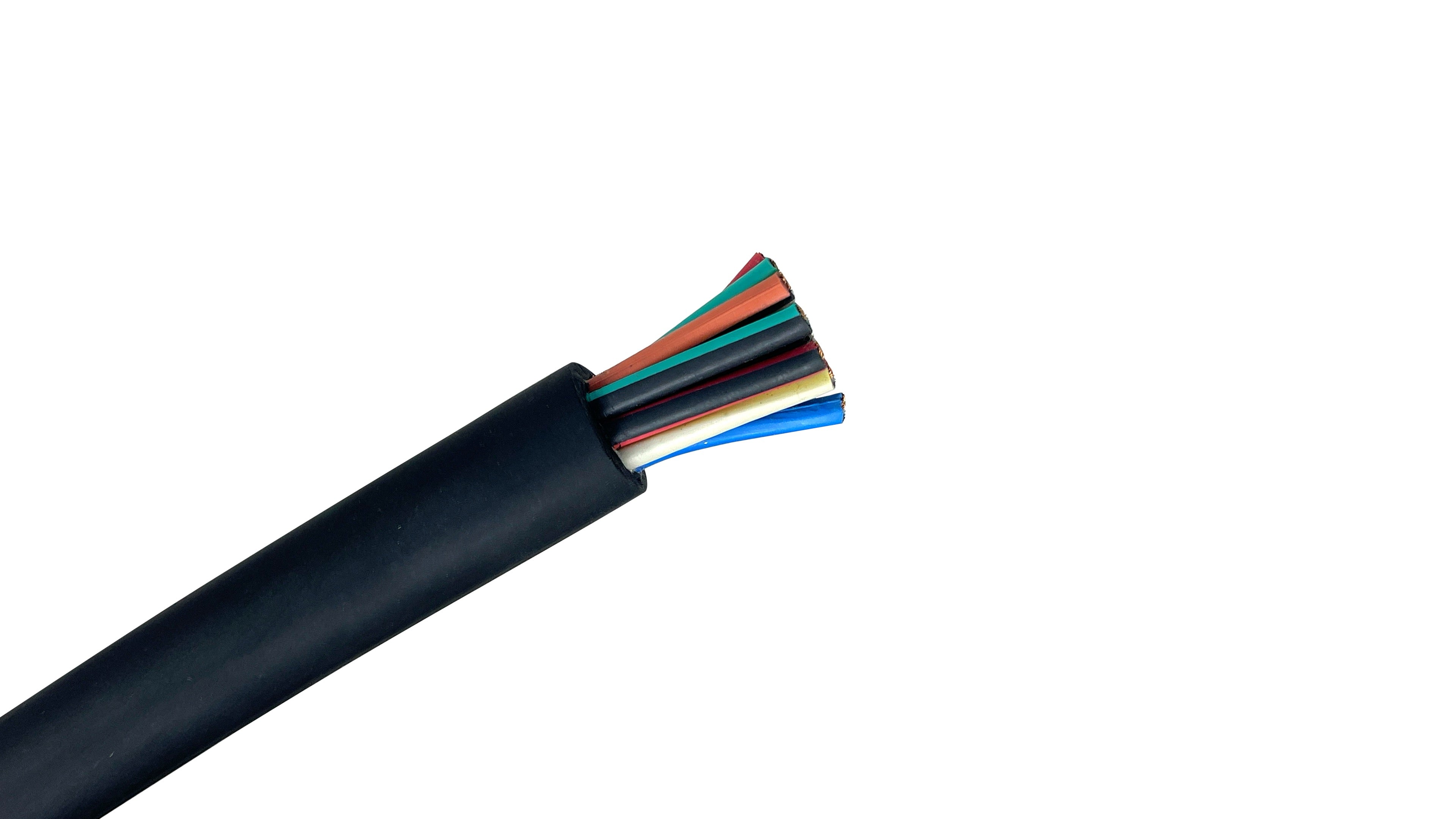

SOOW FLEXIBLE 600V CORD is a highly versatile and robust portable power cord built for demanding electrical applications. Its name is an acronym detailing its features: "S" for heavy-duty Service (typically 600 volts), "OO" for Oil-resistant insulation and outer jacket, and "W" for Weather and water resistance. This cable is valued for its exceptional flexibility, durability, and ability to resist abrasion, heat, oils, moisture, and sunlight. Consequently, SOOW cable sees widespread use in industrial environments, construction sites, and with portable tools and equipment, serving diverse indoor and outdoor power needs.
10 CONDUCTOR COLORS:
Black, White, Red, Green, Orange, Blue, White/Black, Red/Black, Green/Black, Orange/Black
ICEA S-58-679, Method 1, Table 1
| Wire Size (AWG/MCM) | 10 AWG |
| Conductor Material | Copper |
| Conductor Type | Stranded |
| Strand Count | 103/30 |
| Outer Diameter (OD) (in/mm) | 1.050 in. / 26.67 mm |
| Jacket Type | EPDM Rubber |
| Conductor Count | 10 |
| Shield | Unshielded |
| Insulation Type | Ethylene Propylene Diene Monomoer (EPDM) or Ethylene Propylene Rubber (EPR) |
| UL Listing Numbers | UL/CSA |
| Voltage Rating | 600V |
| Ampacity Rating | 17.5 |
| Submersible | No |
| Flexibility Rating | Very Good |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL 62 CSA C22.2 No. 49 Flame test meets FT2 MSHA Approved OSHA Accepted NEC Article 700 permitted use for specific applications NFPA 70 permitted use in Hazardous Locations Classes I, II, III, Divisions 1 & 2 as outlined in Articles 501, 502, 503 section 211 |
| Miscellaneous Information | All values are nominal and subject to correction. |
| Primary Applications | Industrial Machinery, Construction Sites, Marine and Shipyards, Temporary Power Systems, Generator Connections, Mining Operations |
| Common Uses |
|
| Weight per Foot | 0.686 lb |
