Parent SKU : FEP1330-16
SKU : FEP1330-16-250-BK

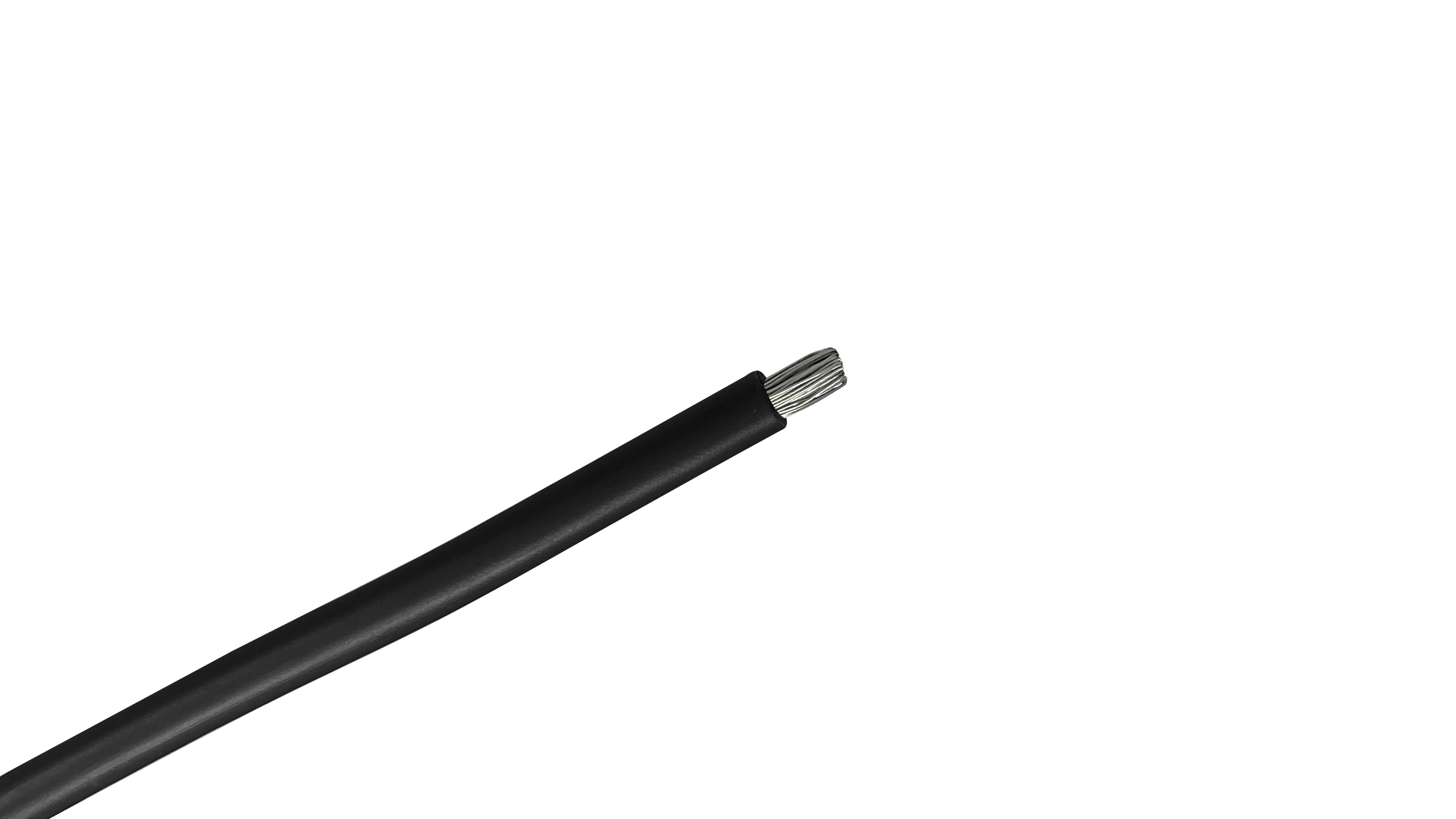

This 16 AWG UL 1330 high-temperature lead wire is a precision-engineered solution for industrial applications requiring reliable power delivery in extreme thermal zones. Utilizing Fluorinated Ethylene Propylene (FEP) insulation, this wire maintains its mechanical toughness and electrical integrity at continuous temperatures up to 200°C, making it a superior choice for high-heat environments where standard insulations would melt or degrade.
Exceptional Thermal Stability: Rated for a continuous operating temperature of 200°C. It is specifically designed for the internal wiring of industrial appliances, commercial ovens, and high-performance motor leads.
FEP Insulation (Fluorinated Ethylene Propylene): FEP provides a unique combination of high dielectric strength and extreme chemical resistance. It is virtually unaffected by most solvents, acids, and fuels, ensuring long-term reliability in corrosive environments.
Corrosion-Resistant Conductors: The 16 AWG stranded conductor typically features silver-plated or nickel-plated copper strands, which prevent oxidation and maintain high conductivity even after prolonged exposure to extreme heat.
Tough & Compact Profile: FEP is a "thin-wall" insulation that is much tougher and more abrasion-resistant than silicone rubber. Its low-friction surface allows for easier pulling through conduit and a smaller overall footprint in dense electrical panels.
Industrial Heating Equipment: Internal wiring for commercial ovens, kilns, and heat-treating systems.
High-Performance Motors: Lead wires for heavy-duty motors and transformers operating under high thermal stress.
Chemical & Refining Equipment: Internal wiring for sensors and power components in chemical processing plants and refineries.
Laboratory Equipment: Used in heating mantles, sterilizers, and other high-heat scientific instruments.
Conductor Size: 16 AWG
Conductor Material: Stranded Silver-Plated or Nickel-Plated Copper
Insulation Material: FEP (Fluorinated Ethylene Propylene)
Voltage Rating: 600V
Temperature Rating: 200°C
UL Style: 1330
Flame Rating: Passes UL VW-1 Flame Test
Compliance: RoHS Compliant, CSA Approved
Technical Note: Because FEP insulation is stiffer than silicone rubber, ensure that your bend radius calculations account for the higher modulus of the material to prevent stress on termination points. When stripping 16 AWG FEP, specialized stripping tools are recommended to avoid damaging the plating on the copper strands.
WIRE TYPE: 16 AWG UL 1330 FEP High Temp Lead Wire
DISCLAIMER: The technical information provided is for general reference only. Specifications, including strand count and conductor plating, may vary by manufacturer. Always consult with a licensed electrical engineer or the equipment manufacturer's guidelines to ensure compliance with safety standards and the National Electrical Code (NEC).
| Wire Size (AWG/MCM) | 16 AWG |
| Conductor Material | Tinned Copper |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.099 in. / 2.51 mm |
| Conductor Count | 1 |
| Shield | Unshielded |
| Insulation Type | FEP - Fluorinated Ethylene Propylene |
| UL Listing Numbers | UL 1330 |
| Voltage Rating | 600V |
| Flexibility Rating | Good |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 200ºC |
| Standards | UL 1330 200ºC continuous use CSA 600V Extruded FEP (Fluorinated Ethylene Propylene) |
| Miscellaneous Information | All values are nominal unless otherwise indicated. |
| Primary Applications | Internal Wiring of Appliances, Chemical Processing Plants, Medical & Laboratory Equipment, Oil & Gas Sensors, High-Intensity Lighting, Automotive/High-Performance Racing. |
| Common Uses |
|
| Weight per Foot | 0.013 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||
The 16 AWG UL 1330 FEP High-Temp Wire is a premium, single-conductor lead wire engineered for internal appliance and electronic wiring where space is limited and extreme heat is a factor. It features a robust 16-gauge tinned copper core insulated with a thin layer of Fluorinated Ethylene Propylene (FEP). This specific construction allows the wire to handle up to 600V and continuous temperatures of 200°C (392°F), making it ideal for harsh thermal and chemical environments.
This high-temperature hook-up wire is widely used for the internal wiring of commercial appliances, industrial ovens, and control panels. Because FEP insulation is completely immune to oil, gasoline, and solvents, it is also highly favored for automotive sensor wiring, fuel cell systems, and chemical processing equipment. Additionally, 16 AWG is the standard "workhorse" size for aircraft wiring, lighting ballasts, and custom thermal assemblies requiring high power density in tight physical spaces.
If you are searching for this high-temperature wire nearby, the fastest and most reliable option is to order through our online store. Rather than hoping a local hardware store has specialized 200°C industrial wiring in stock, you can purchase directly from us. We fulfill orders immediately with an estimated standard shipping time of 2-4 days, and we offer expedited shipping options at checkout if you are working against a tight project deadline or need emergency replacement wire.
Yes. Because it is rated for 200°C (392°F), it is perfectly safe to use for internal wiring repair on ovens, commercial grills, and smokers. However, you should always route it along the frame rather than wrapping it directly around a glowing heating element, which can far exceed 400°F.
